M05 series SMT Double Splice Tape with Alignment Guide Design

Place of Origin Guangdong, China

Brand Name KangHongJin

Certification RoHS

Model Number M05 series

M05 series SMT Double Splice Tape with Alignment Guide Design

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Single Splice Tapes

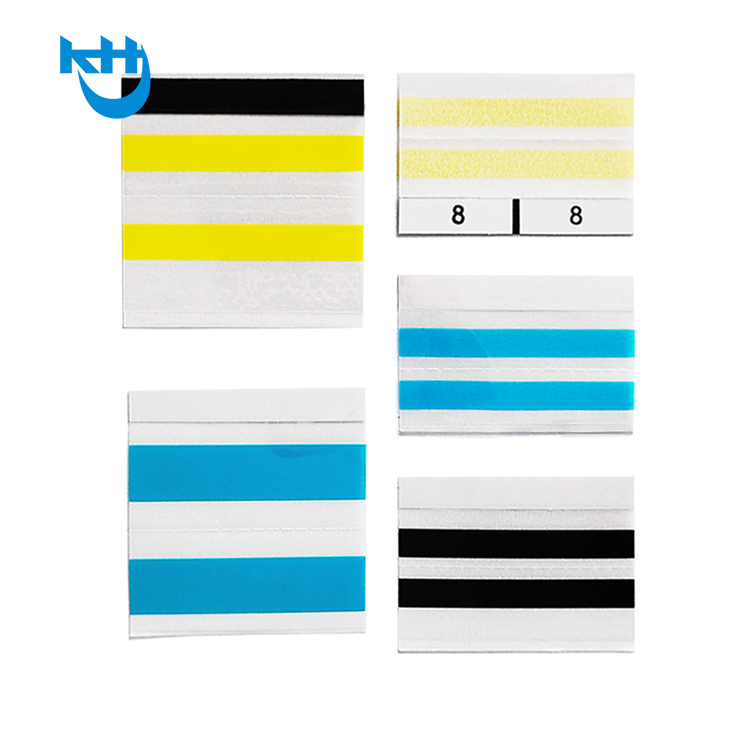

M05 series SMT double splice tape with double embossed dots designed apply for all sizes(8/12mm/16mm/24mm/32/44/56/72/88mm) of carrier tape

M05 series splice tape is used for jointing carrier tapes in the SMT process, It is made of 2 tapes and release paper with alignment guide design, and the tape is made by our produced patent material with superior adhesion.

Fast delivery speed

Features And Benefits:

1. High viscosity tape with high accuracy, no need to use auxiliary tools.

2. Using imported tape in high strength and high adhesive.

3. Easy to operate, saves labor, improves process efficiency.

4. Wide base paper design for easy removal.

5. Our factory independently develops glue and produces.

Application: Used for jointing carrier tapes in the SMT process and Solving the connection

Accept OEM/ODM

Part	Dimensions	Material	Package	Weight
M-0508(8mm)	40mm x 4.8mm	PET	500pcs/box	0.5kg
M-0512(12mm)	40mm x 6mm	PET	500pcs/box	0.5kg
M-0516(16mm)	40mm x 9.5mm	PET	500pcs/box	0.5kg
M-0524(24mm)	40mm x 18mm	PET	250pcs/box	0.5kg
