SMT splicing tool - Splicing copper clip

SMT splicing - SMT splicing copper clip

SMT splicing tool - Splicing copper clip

SMT Splicing Tip: Splicing copper buckle + splicing pliers + single-sided splicing tape

1. Pull the slider, and gently place a clip inside the plier head.
2. Center both carrier tapes (cover tape up) on the pins, and secure with the clamps.
3. Close the fixings on both sides.
4. Crimp the handle to connect the carrier tapes.
5. Add a single splice tape strip to the cover tape and press firmly to complete the splice.

M0700 is a new splicing copper buckle that can be spliced 20 times in a row with a stapler splicing tool.

M0600 is an economical way of splicing materials, 4000psc/bag.

Product name	PN	Specifications	Quantity
SMT Frame Style Splice Clip	M0700	Suitable for 8-72MM	20 clips/ frame, 25 frames/box
SMT Borderless Frame Style Splice Clip	M0700	Suitable for 8-72MM	20 clips/ frame, 25 frames/box
SMT Single Splice Clip	M0600	Suitable for 8-72MM	4000pcs/box

SMT Frame Style Splice Clip:
1. Copper buckle for splicing rows: Made of phosphor Copper , it has strong toughness and can splice materials without stopping the machine, improve efficiency, reduce costs, and reduce losses. When used with splicing pliers, the splicing is stronger and the connection is better.

2. Frame Style copper buckles for connecting carried tape has 20 copper buckles to connect 20 times. There is no need to put the copper buckle in every time, so it saves a lot of time.

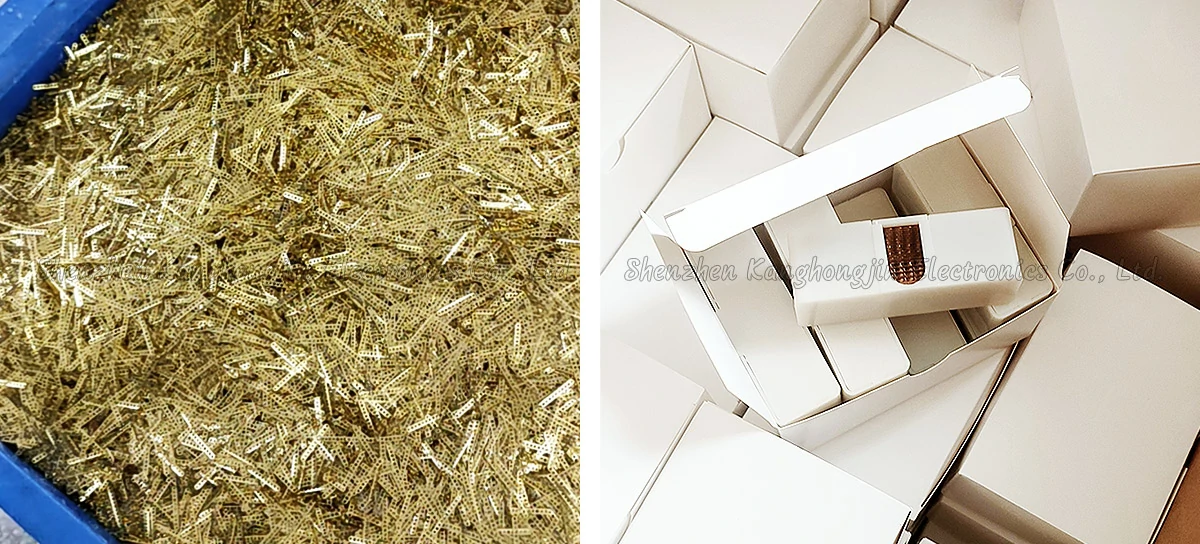

Single piece splicing copper buckle
1. The single-piece splicing copper buckle is made of brass and has strong toughness, which reduces costs and losses. When used with splicing pliers, the splicing is stronger and the connection is better.

The splicing copper buckle is also different from many products on the market. It is stamped from 0.1mm thick phosphor bronze. The copper thorns are sharp and can easily penetrate various paper tapes and tapes. Suitable for connecting various carried tapes with a width of 8mm~72mm

Advantages:

1. Improve process efficiency 2. Easy to operate, save labor 3. Reliability, long service life 4. Extra long warranty period

New: Selected materials, carefully crafted! Affordable, affordable!

Accept OEM/ODM
Dear customer, we make a lot of tapes in different colors and size, please send inquiry to us with your request tape size and color, we could show you our finished products and tape specification according to your usage.

-
KangHongJing is a professional production and sales factory. I hope it can help you. If you want to know more about SMT assembly information, you can follow the updates of KangHongJing.
